STEP 3_Choose Your Cabinets

Choose Your Cabinets

AlfrescoPlus™ pre-packaged, flat-packed module range

There are single and double sink, fridge and storage modules in the AlfrescoPlus™ range to choose from.
There are also various sized BBQ modules to suit your preferred BBQ.

The AlfrescoPlus™ flat pack outdoor kitchen cabinets, cupboards and other modules feature PVC panels
which are waterproof and won’t crack, split or rot and AlfrescoPlus™ patented aluminium frames which make assembly easy for any DIYer. All modules come with a new sintered stone benchtop and can be fitted with a choice of 3 different colour compact laminate doors. All fitted with high quality hardware, levelling legs and kicker panels.

All BBQ modules come with vented cabinets that comply to New Zealand standards for LPG cylinder storage. The AlfrescoPlus™ patented Air Frame system, integrated with every BBQ module, provides a heat proof shield between the BBQ and cabinetry. There are also vents in the fridge modules to allow plenty of air ventilation.

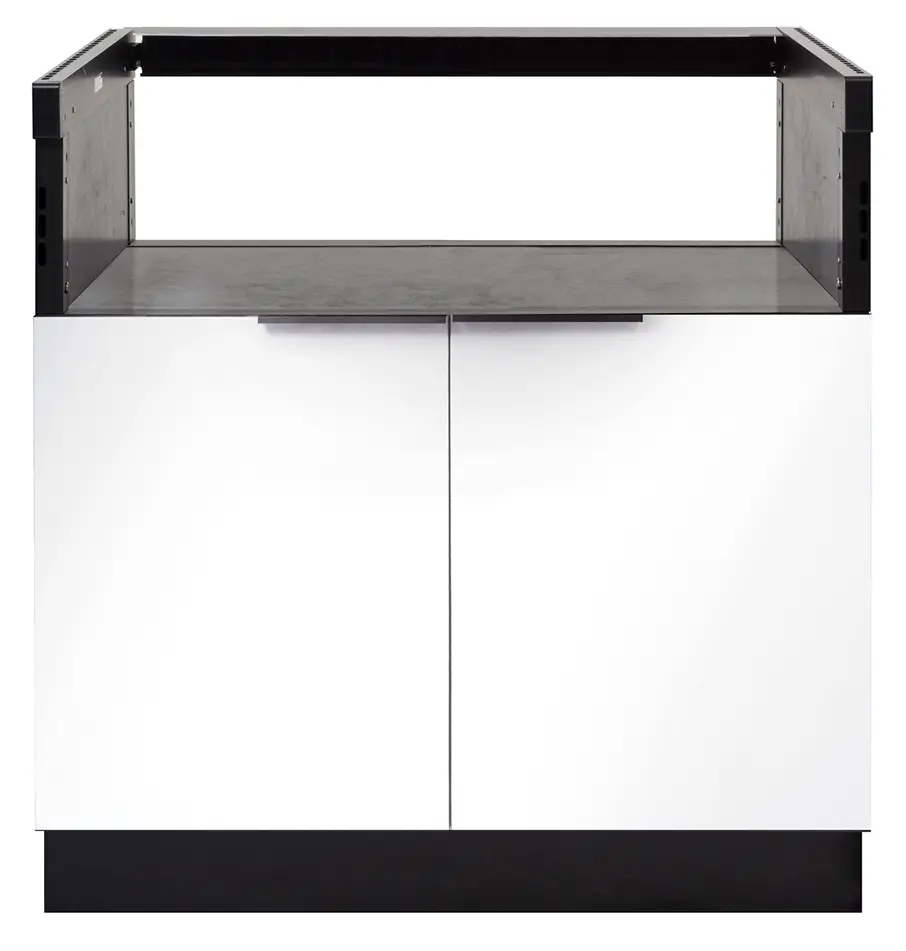

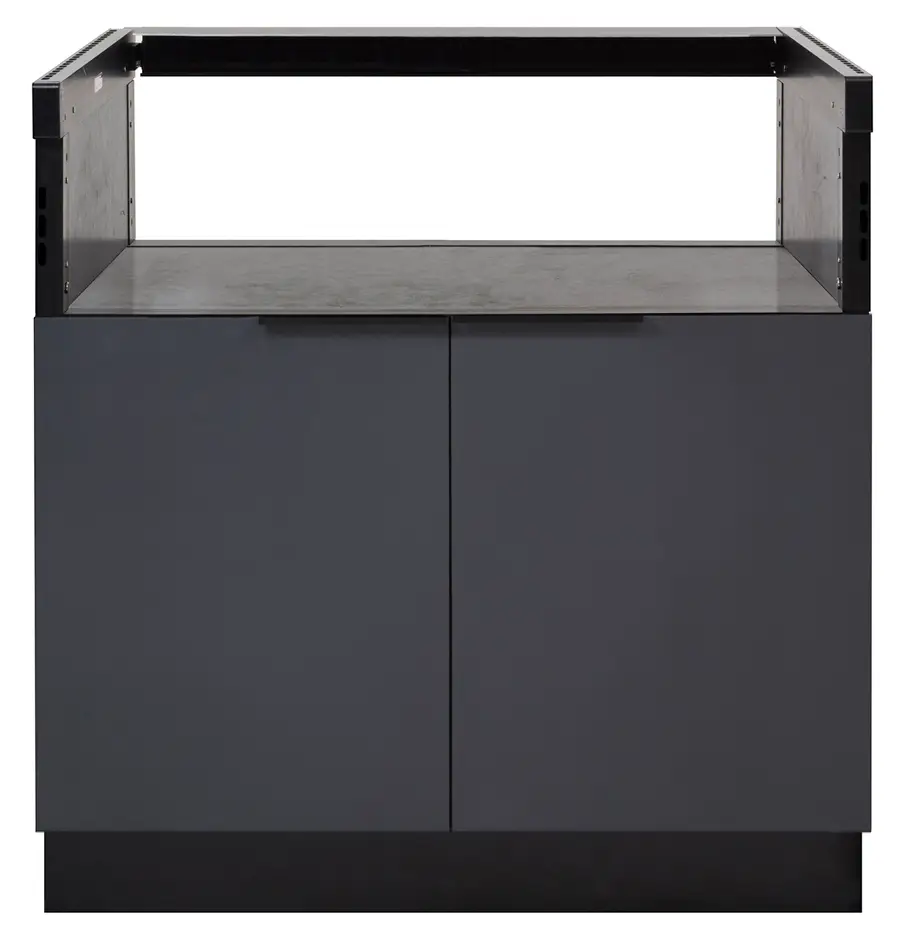

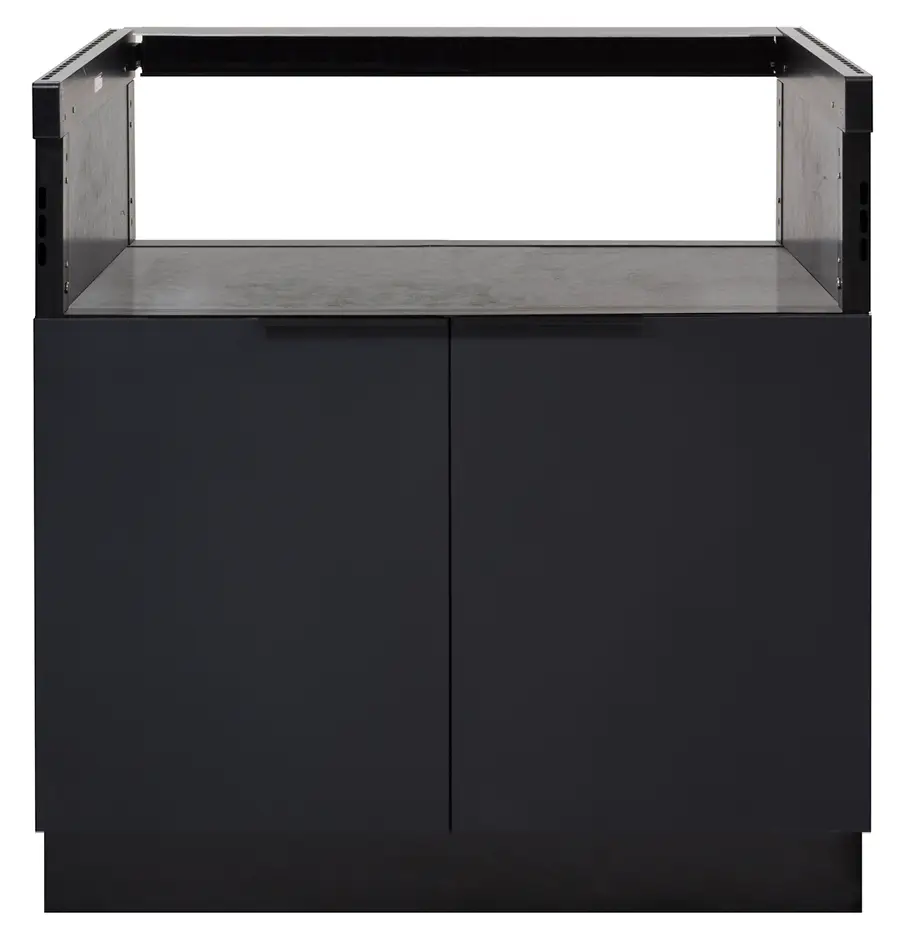

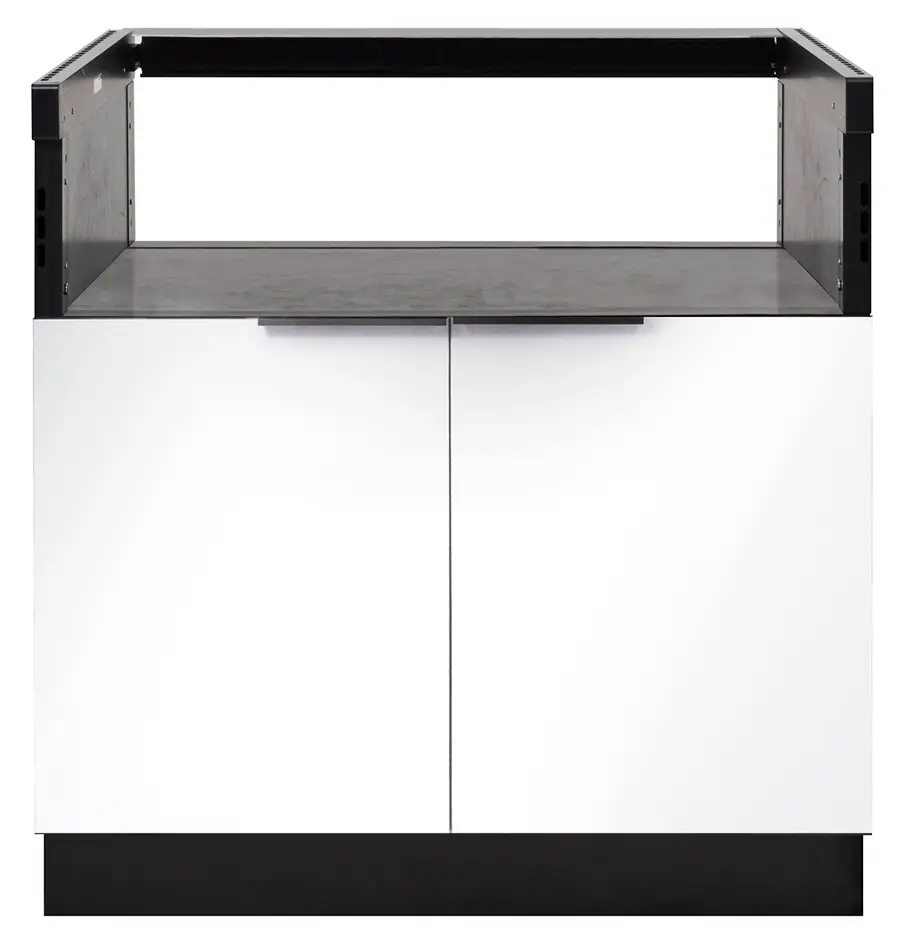

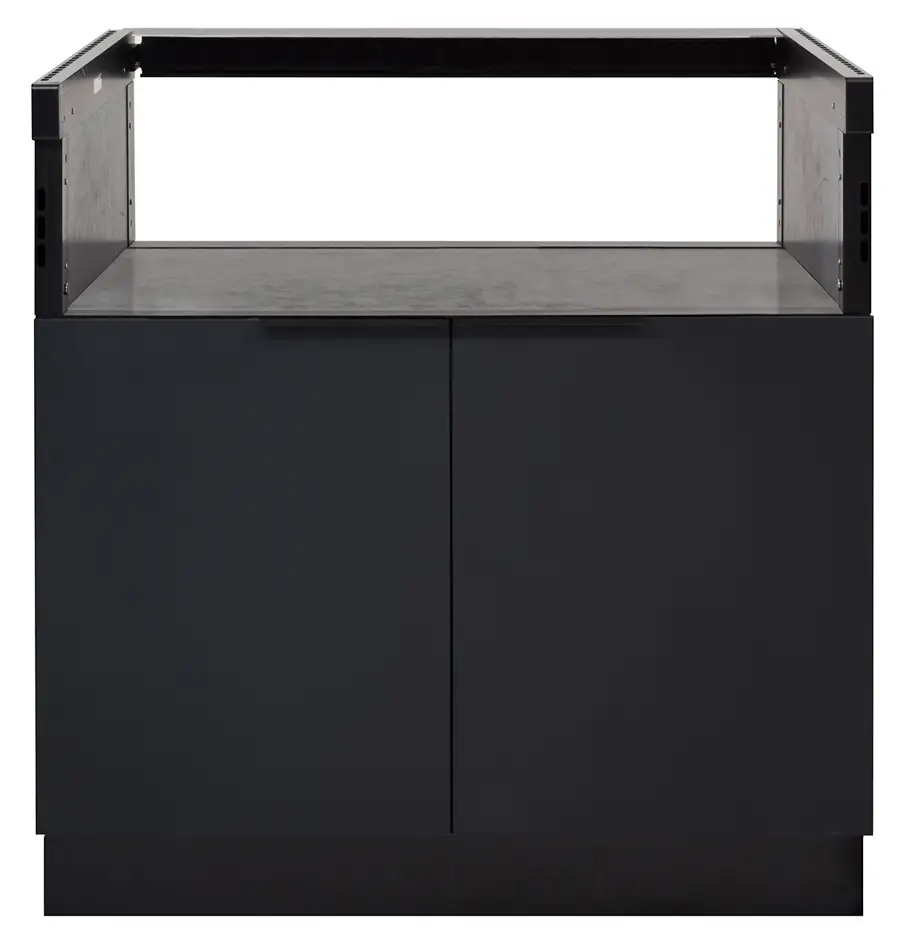

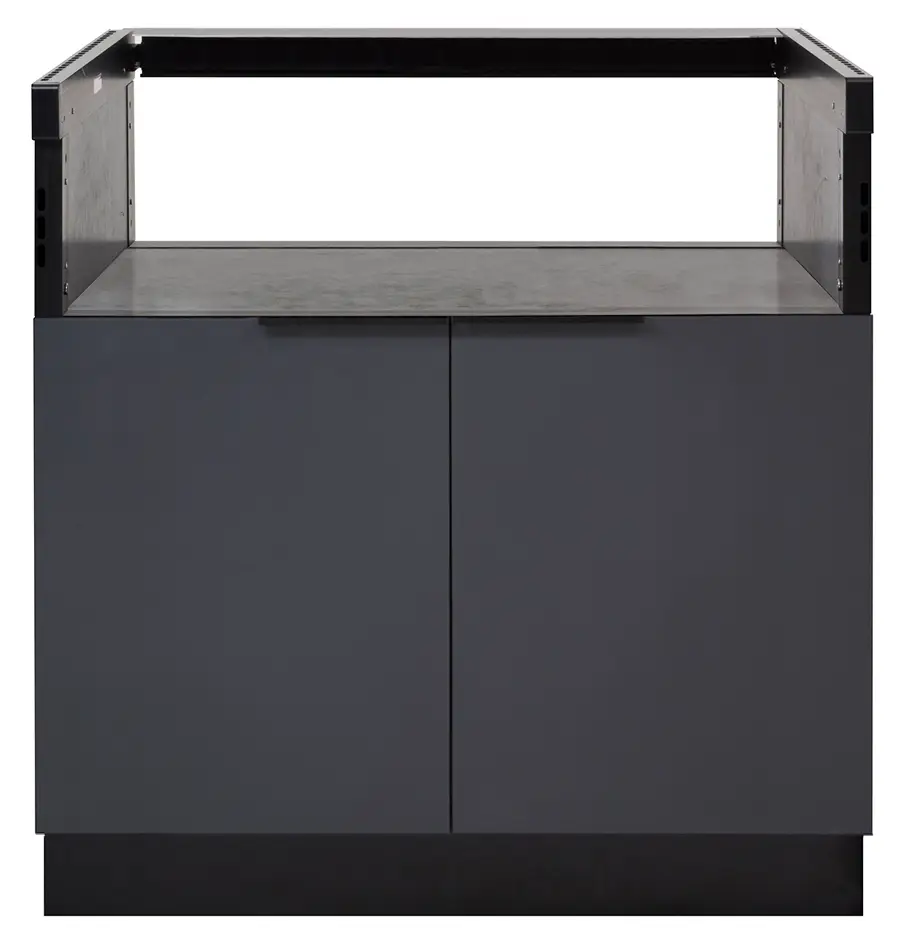

BBQ Module & Air Frame – 890mm

Suits: Matador Ignite+ 4B BBQ

• 890mm W x 580mm D x 950mm H

• 950mm total max height including
adjustable feet and Air Frame

• Air Frame: 730mm deep to allow for services*

Arctic White

APBBM890W

I/N: 0668300

Cadet Grey

APBBM890W

I/N: 0668297

Black Onyx

APBBM890W

I/N: 0668296

BBQ Module & Air Frame – 925mm

Suits: Weber Family Q Built-In BBQ

• 925mm W x 580mm D x 950mm H

• 950mm total max height including
adjustable feet and Air Frame

• Air Frame: 730mm deep to allow for services*

Arctic White

APBBM925W

I/N: 0404030

Cadet Grey

APBBM925W

I/N: 0404031

Black Onyx

APBBM925W

I/N: 0404034

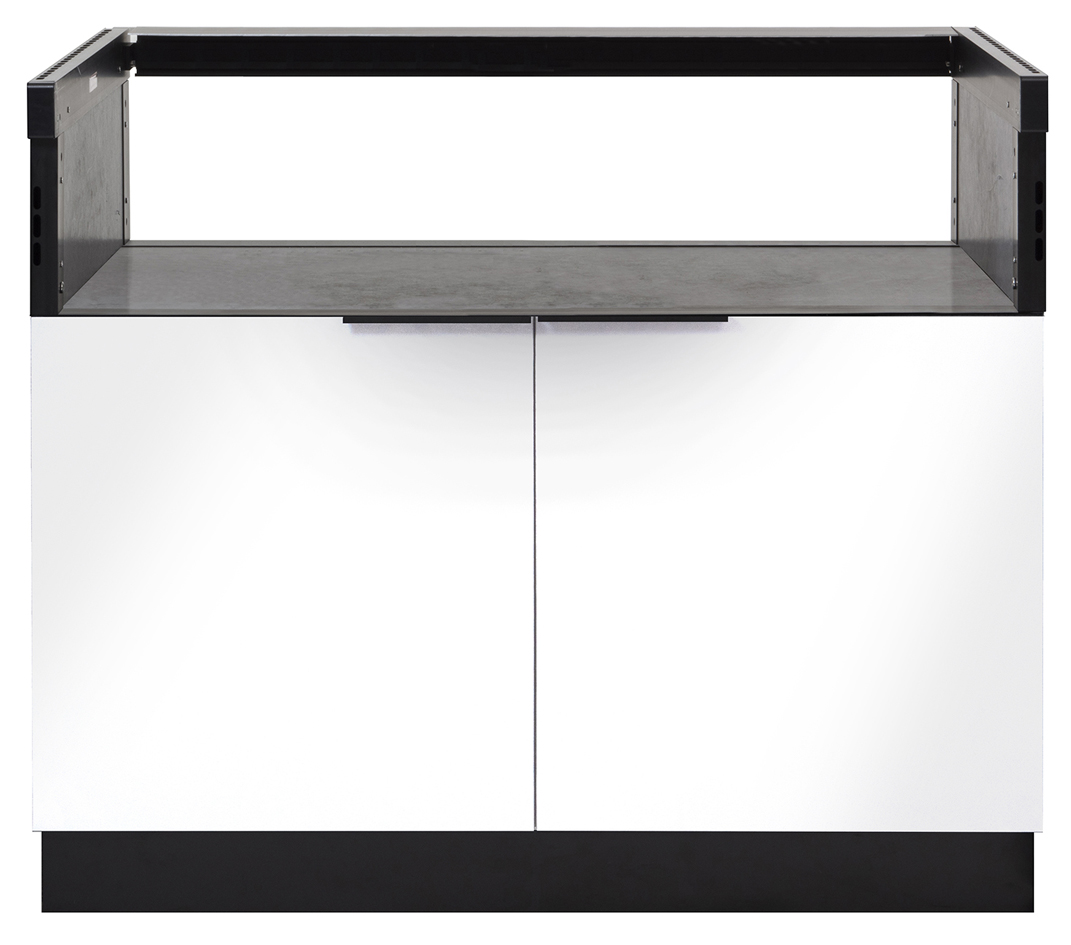

BBQ Module & Air Frame – 1130mm

Suits: Matador Ignite+ 6B BBQ

• 1130mm W x 580mm D x 950mm H

• 950mm total max height including
adjustable feet and Air Frame

• Air Frame: 730mm deep to allow for services*

Arctic White

APBBM1130W

I/N: 0668295

Cadet Grey

APBBM1130G

I/N: 0668298

Black Onyx

APBBM1130B

I/N: 0668299

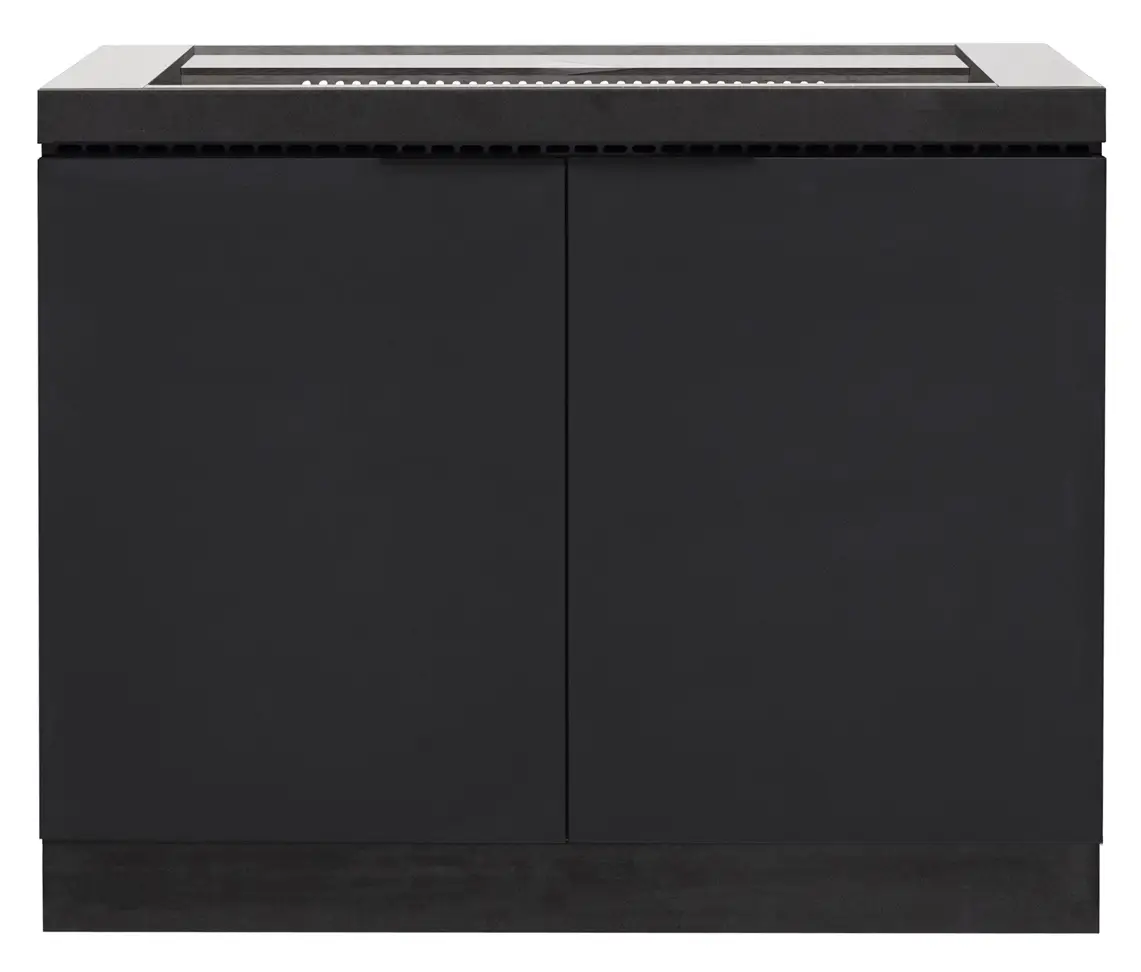

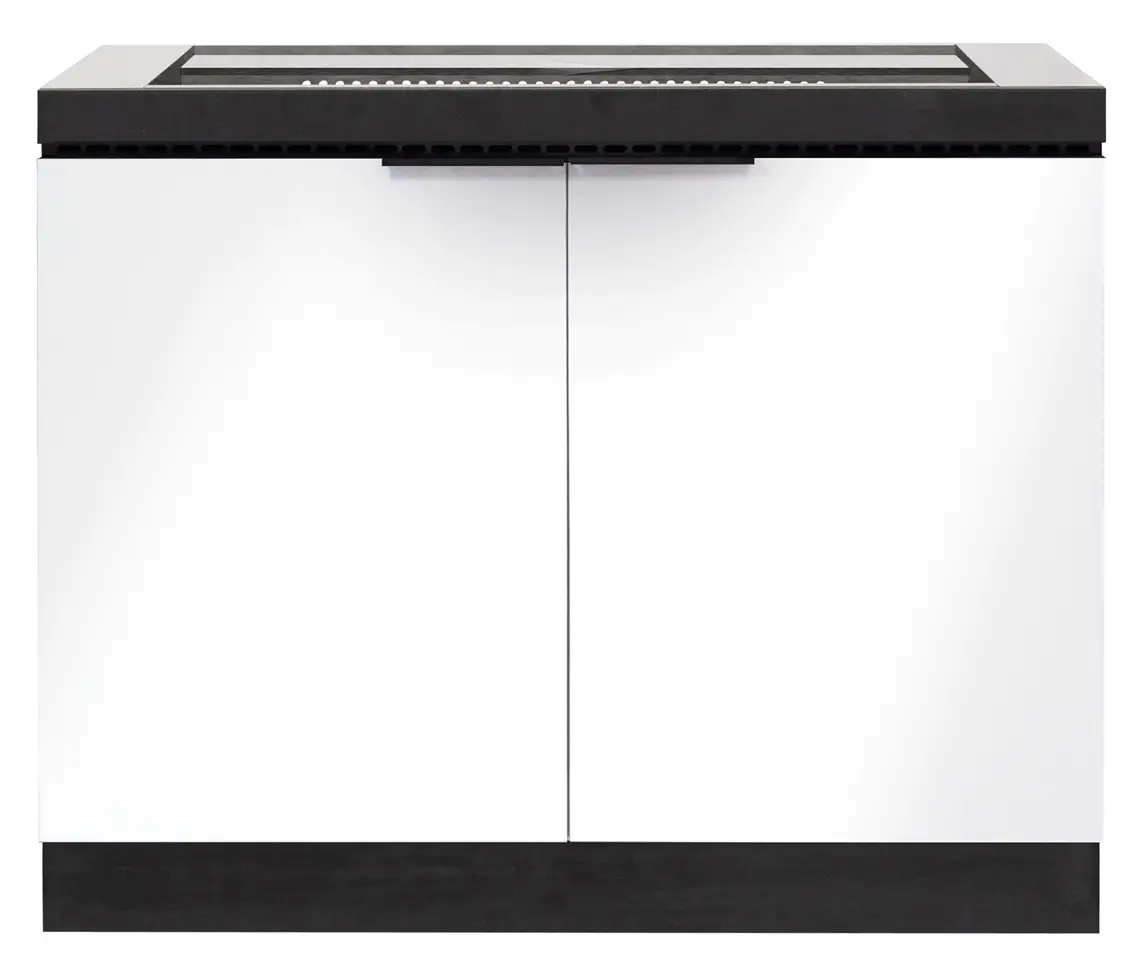

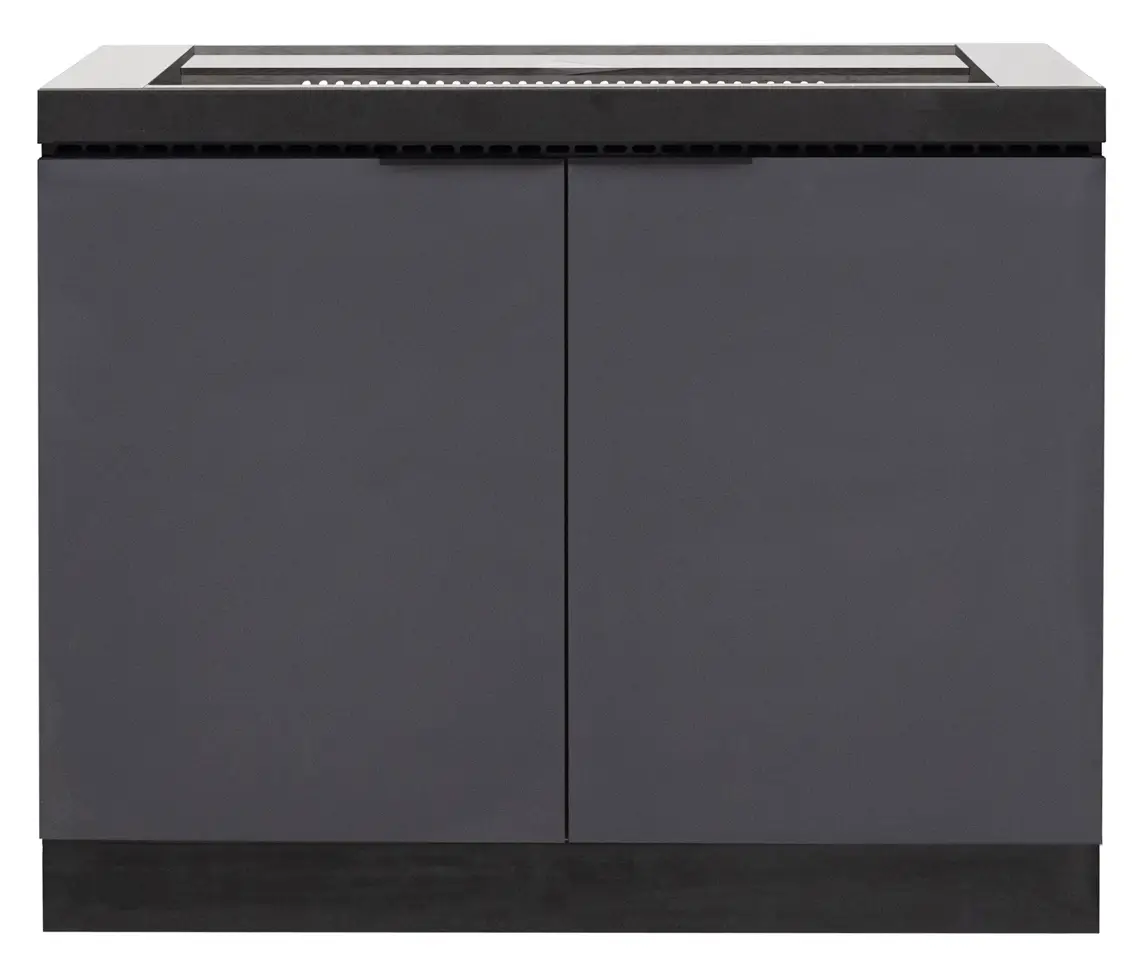

BBQ Module & Bench Top – 1165mm

Suits: Gasmate SOHO Drop In 4B BBQ
with Flat Lid or Hood

• 1165mm W x 670mm D x 950mm H

• 950mm total max height including
adjustable feet and Air Frame

• Air Frame: 730mm deep to allow for services*

Arctic White

APBBM1165DIW2

I/N: 0650448

Cadet Grey

APBBM1165DIG2

I/N: 0650462

Black Onyx

APBBM1165DIB2

I/N: 0650456

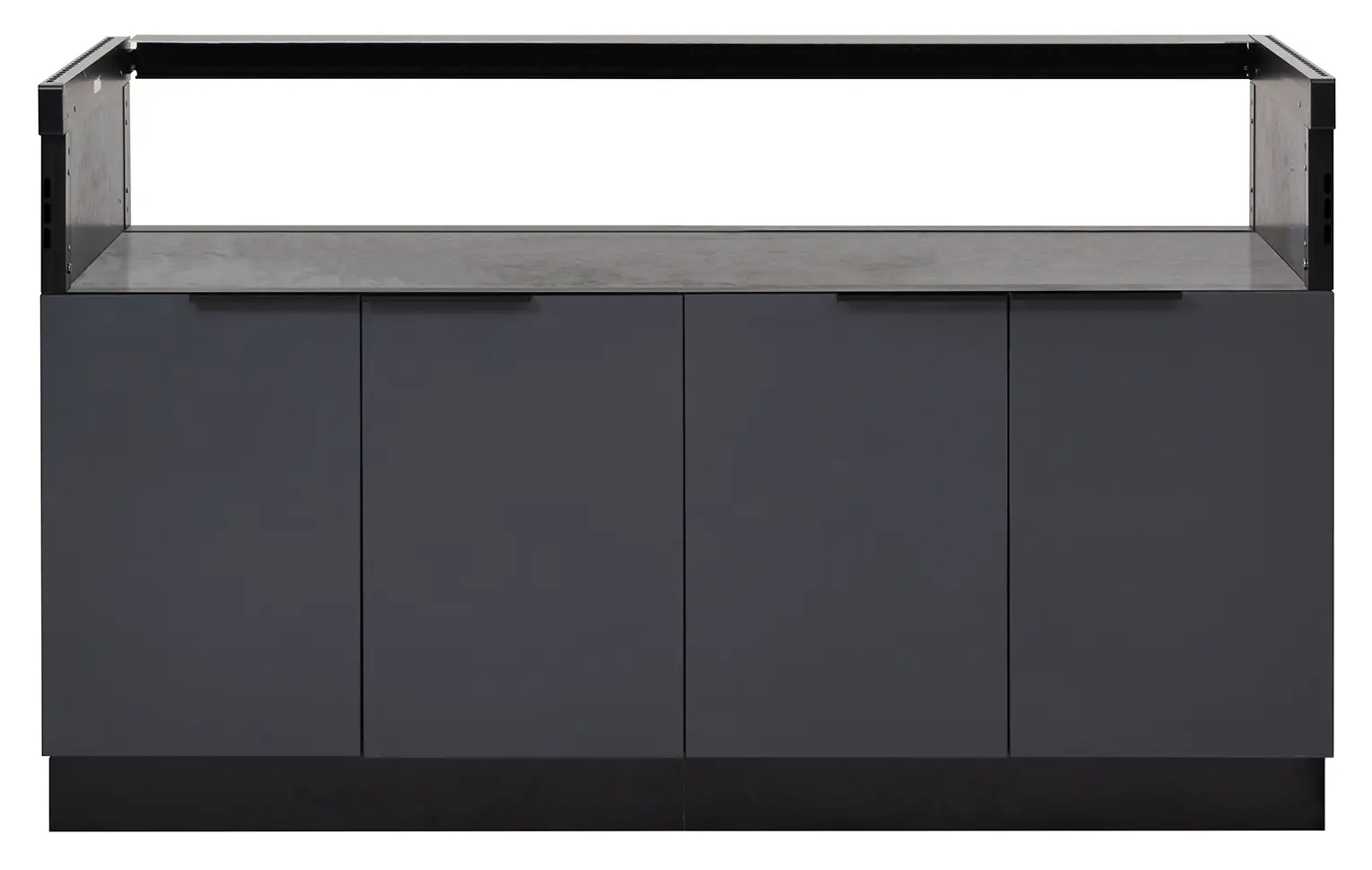

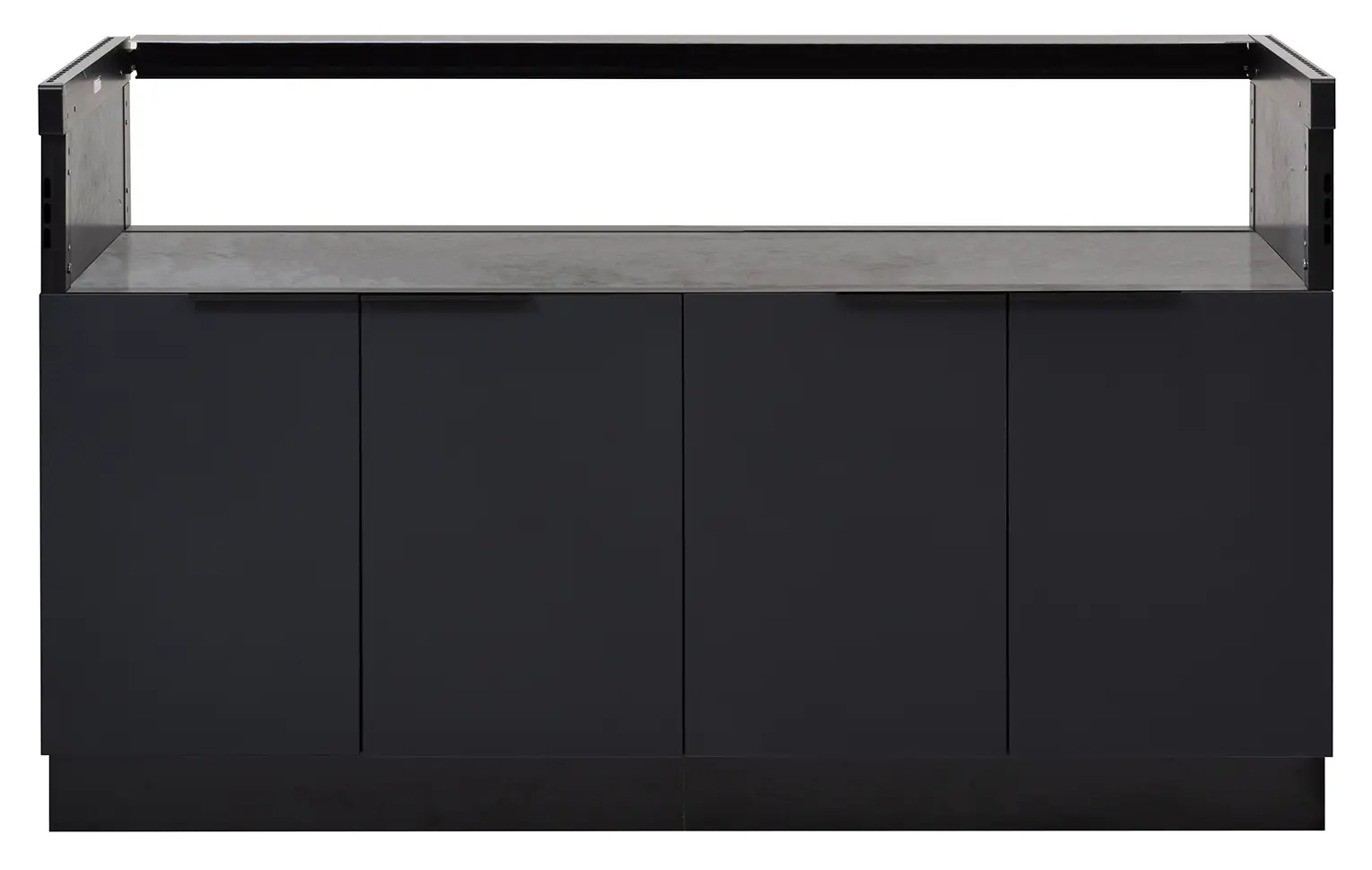

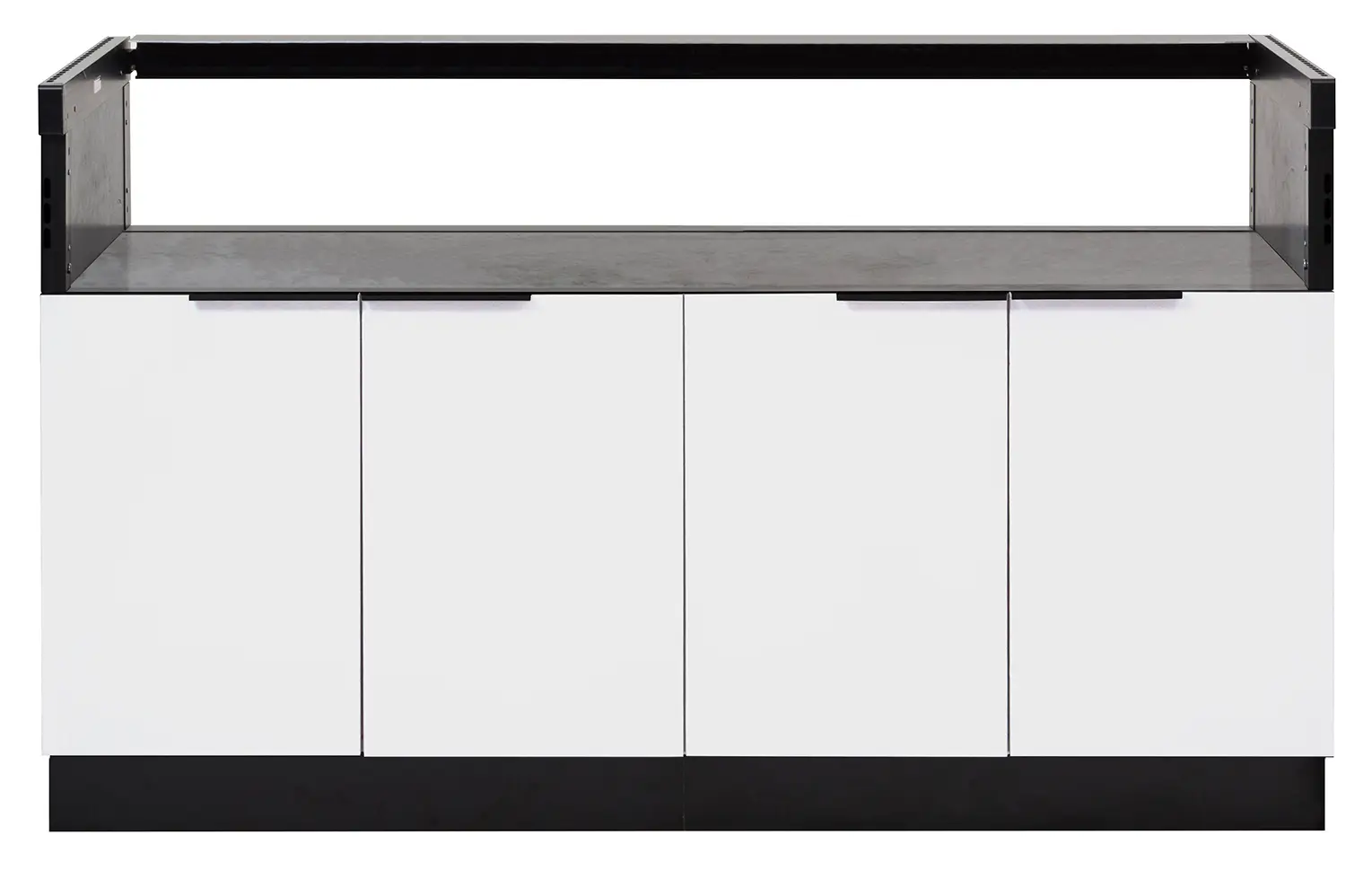

BBQ Module & Air Frame – 1530mm

Suits: Gasmate Platinum IV 6B BBQ

• 1530mm W x 580mm D x 950mm H

• 950mm total max height including
adjustable feet and Air Frame

• Air Frame: 730mm deep to allow for services*

Arctic White

APBBM1530W

I/N: 0119421

Cadet Grey

APBBM1530W

I/N: 0119422

Black Onyx

APBBM1530W

I/N: 0119424

AlfrescoPlus™ storage, sink and fridge module kits

Single Modules

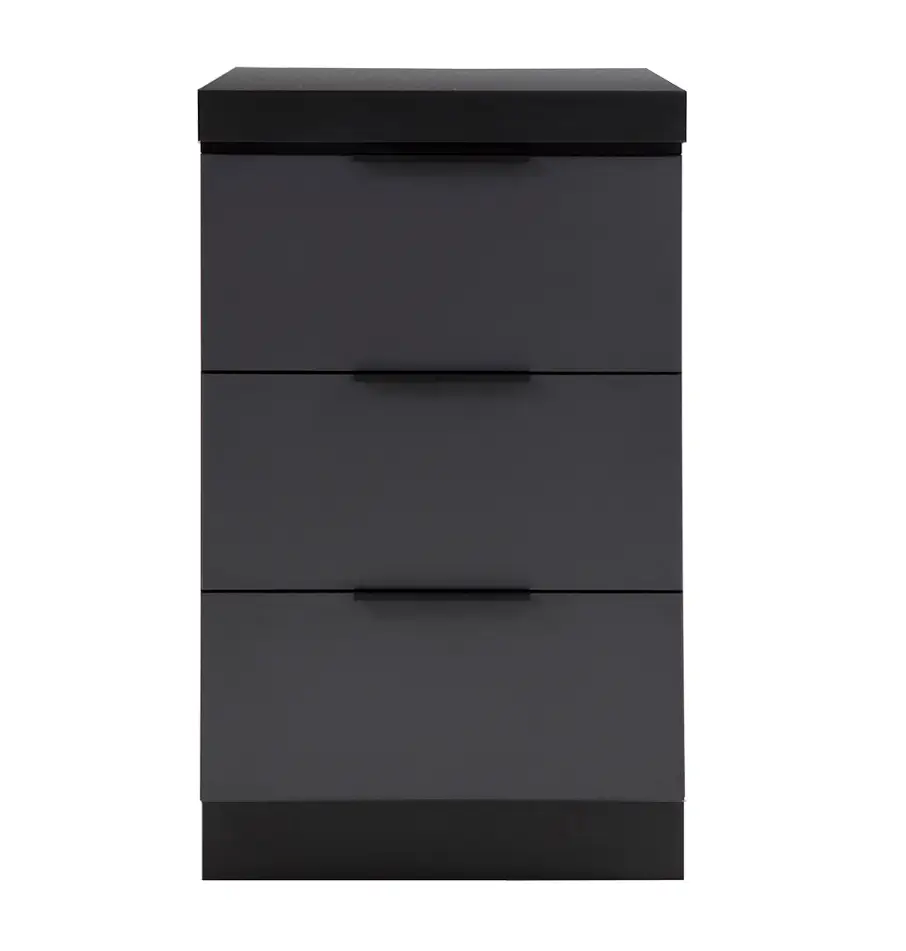

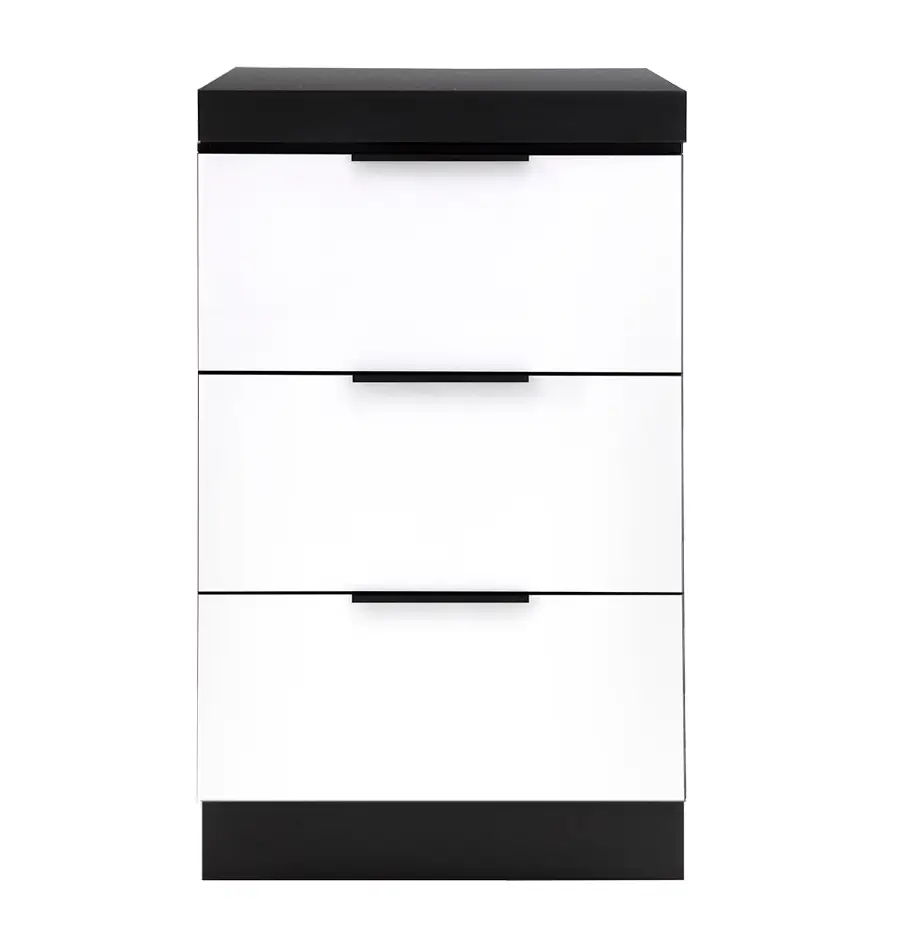

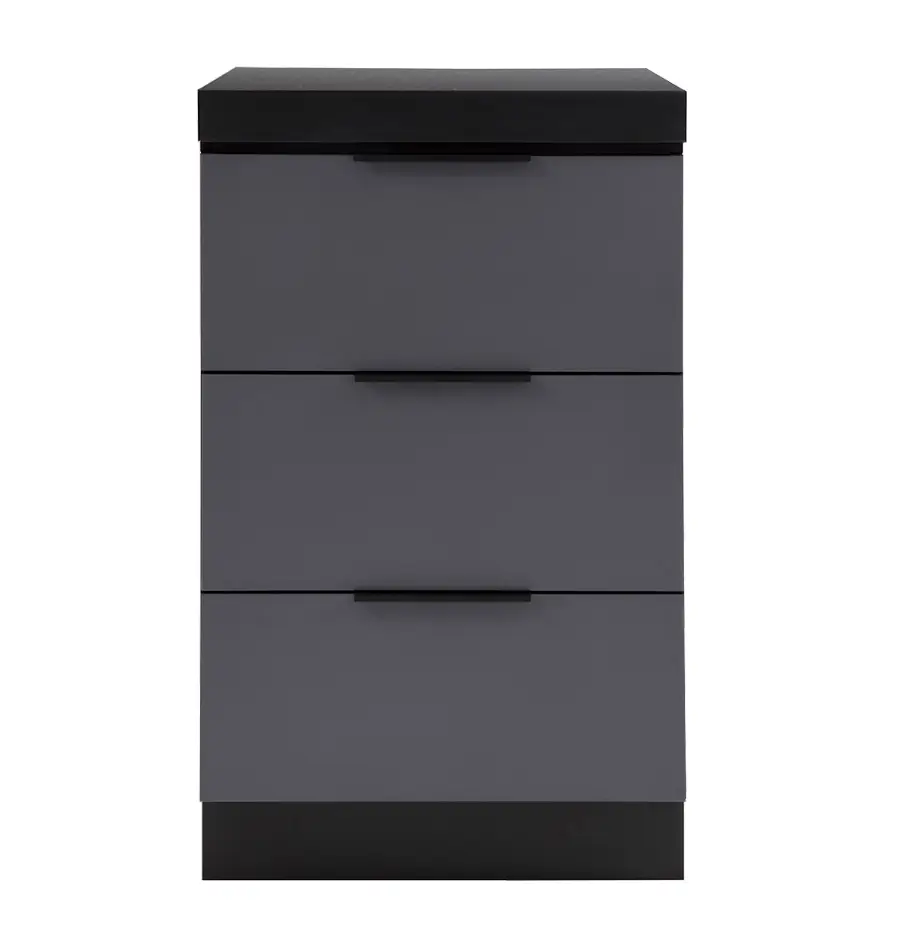

Single 3 Drawer Module

• Module: 550mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and Bench top

• Bench top: 730mm deep to allow for services*
(see note below)

Arctic White

APSDRMW2

I/N: 0650450

Cadet Grey

APSDRMG2

I/N: 0650452

Black Onyx

APSDRMB2

I/N: 0650451

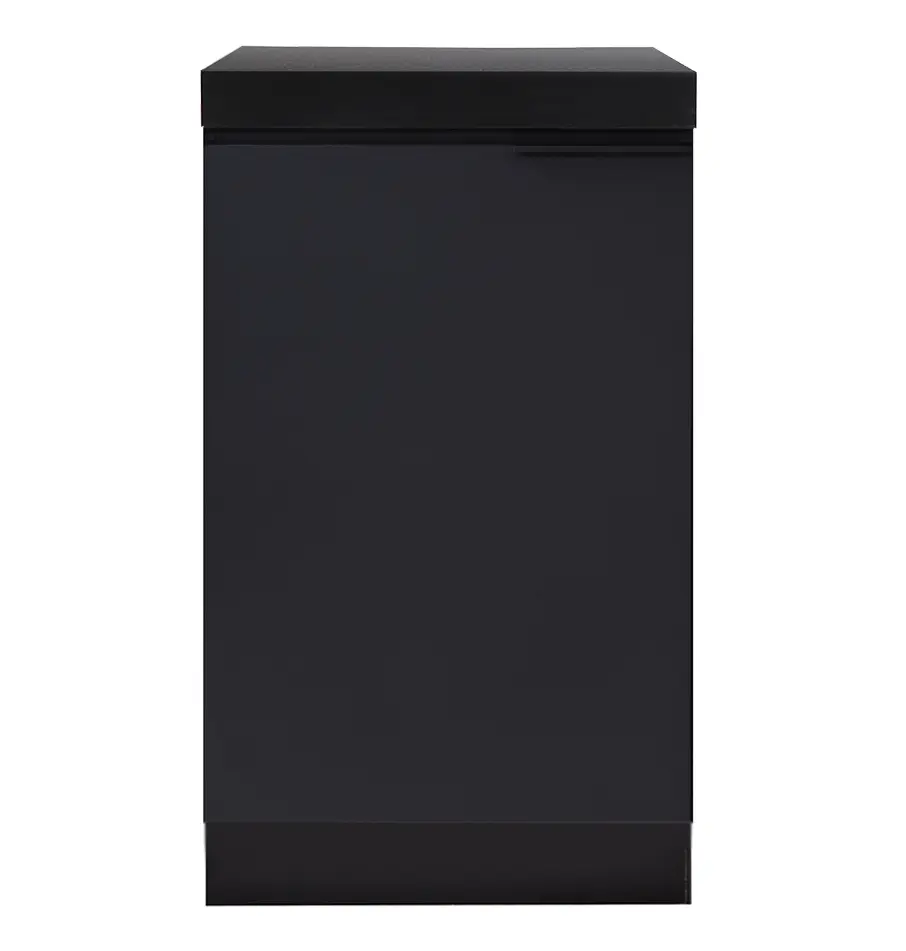

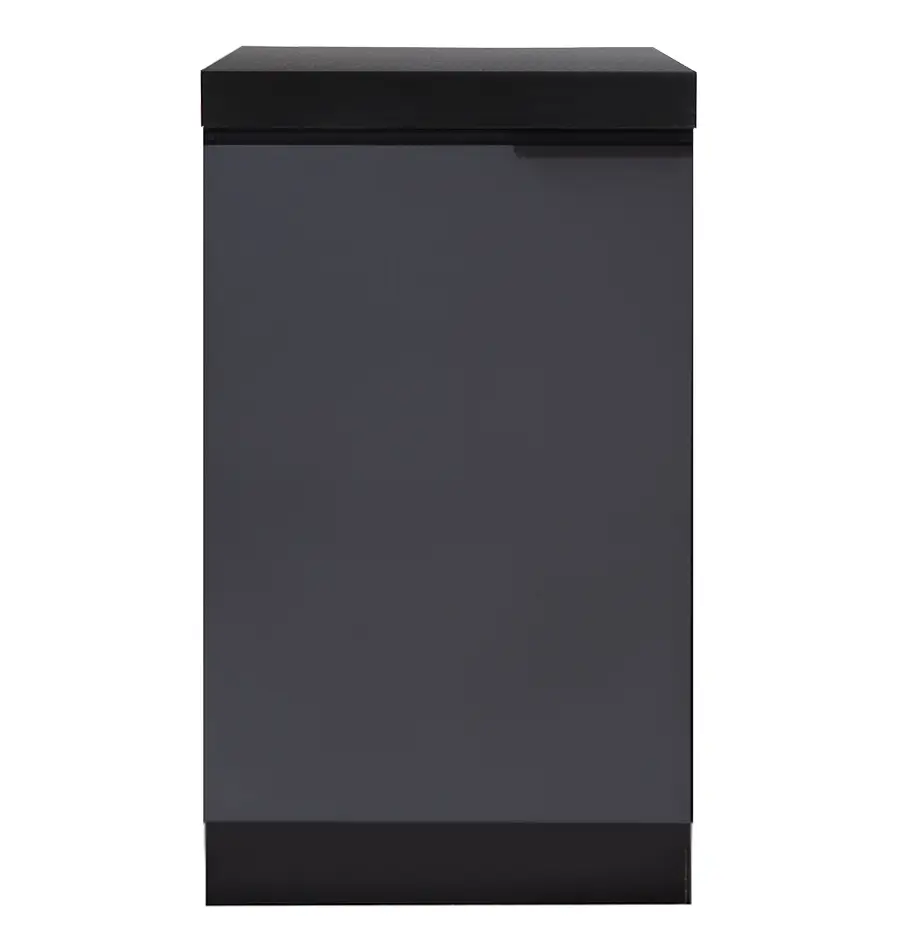

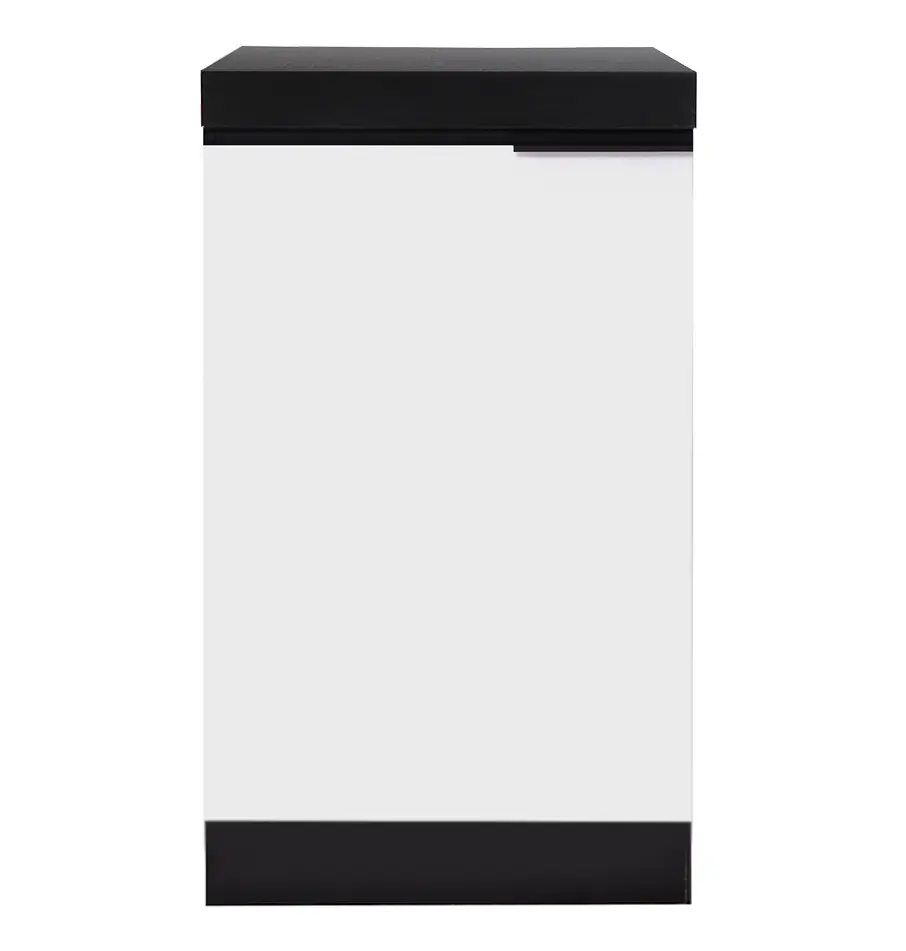

Single Door Module

• Module: 550mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and Bench top

• Bench top: 730mm deep to allow for services*
(see note below)

Arctic White

APSDMW2

I/N: 0650445

Cadet Grey

APSDMG2

I/N: 0650461

Black Onyx

APSDMB2

I/N: 0650460

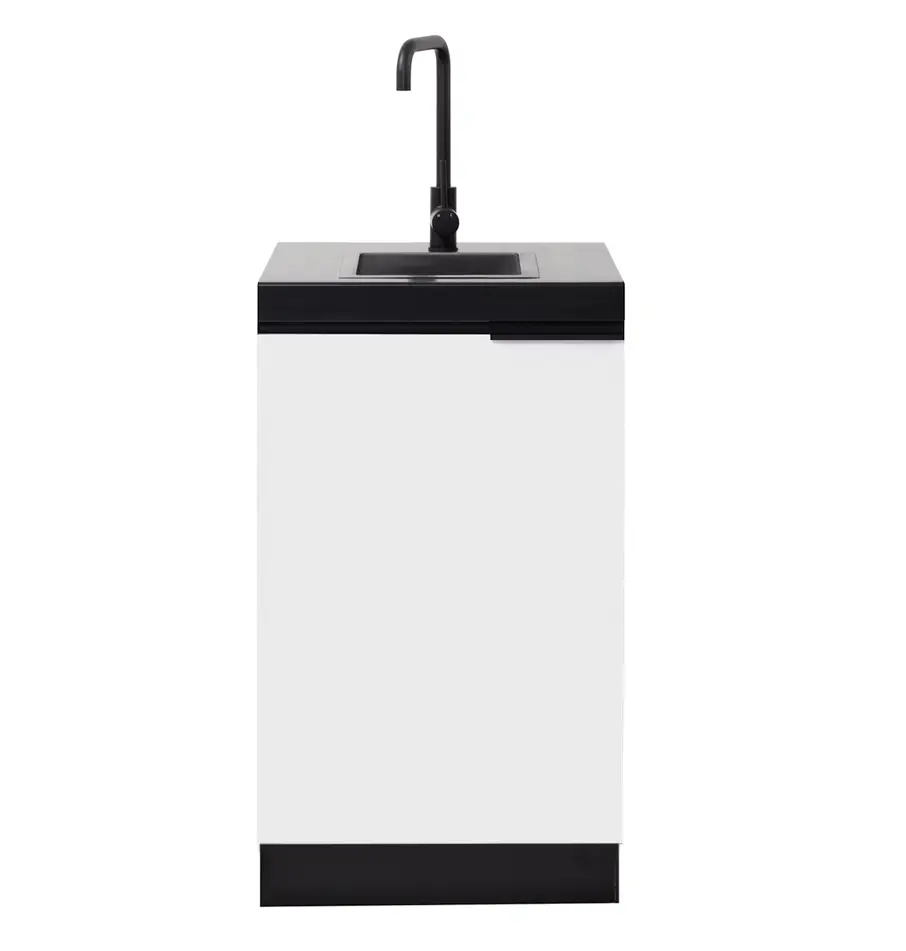

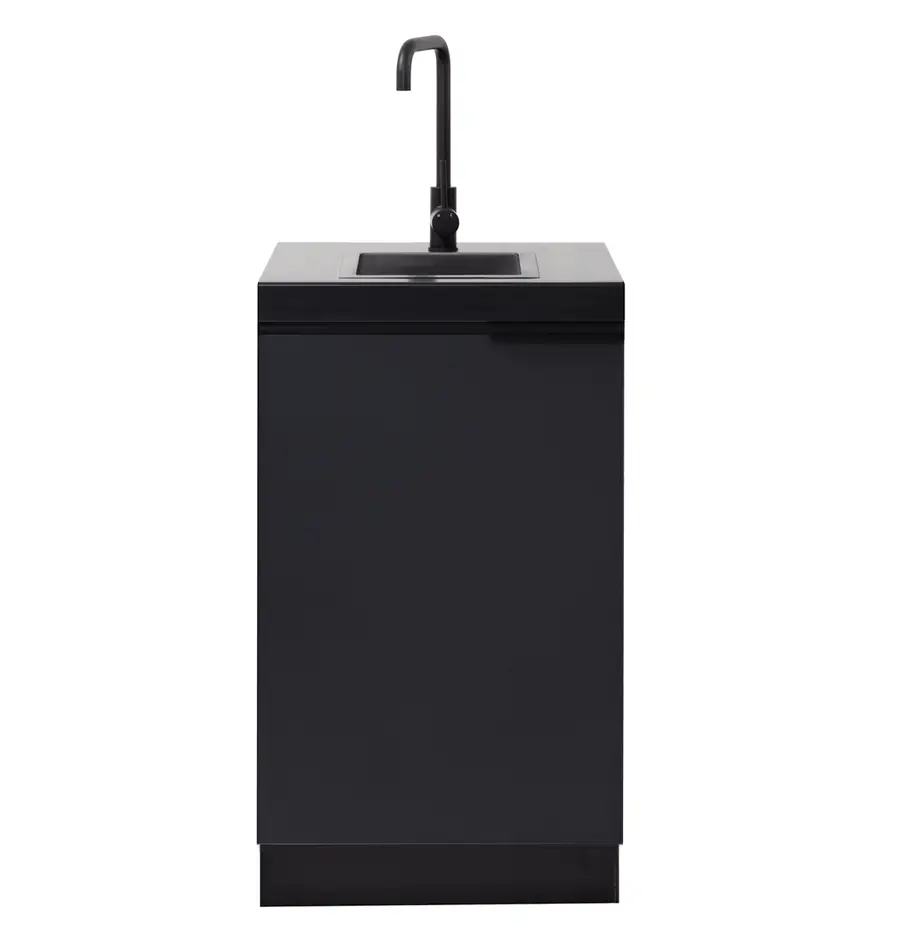

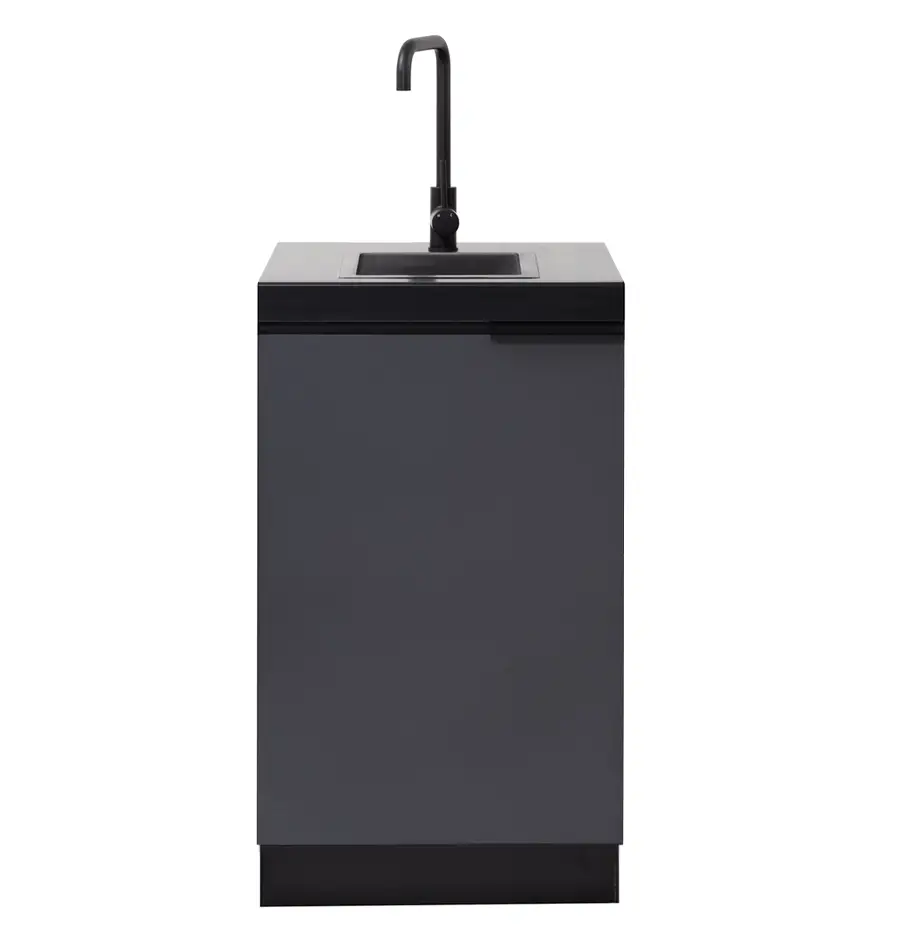

Single Sink Module

• Module: 550mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and Bench top

• Bench top: 730mm deep to allow for services*
(see note below)

• Includes matt black sink and tap

Arctic White

APSSMW2

I/N: 0650464

Cadet Grey

APSSMG2

I/N: 0650455

Black Onyx

APSSMB2

I/N: 0650458

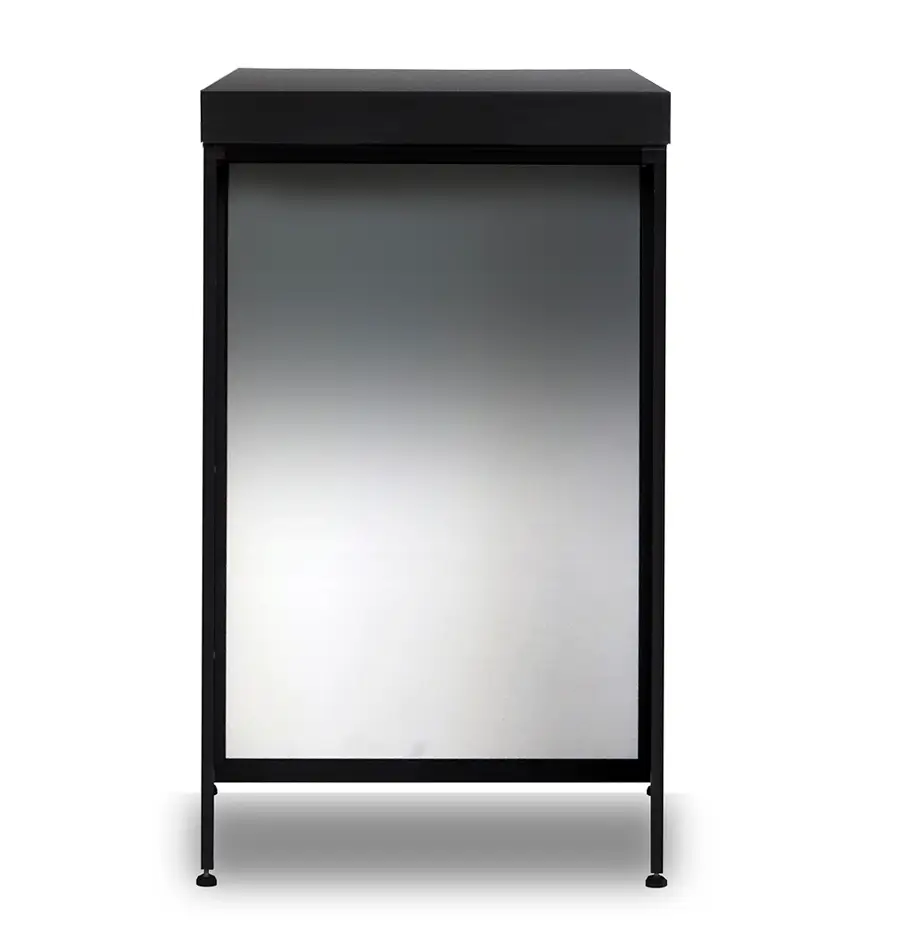

Single Fridge Module

• Module: 550mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and bench top

• Bench top: 730mm deep to allow for services*
(see note below)

• Vents at back of module

APSFM2

I/N: 0650453

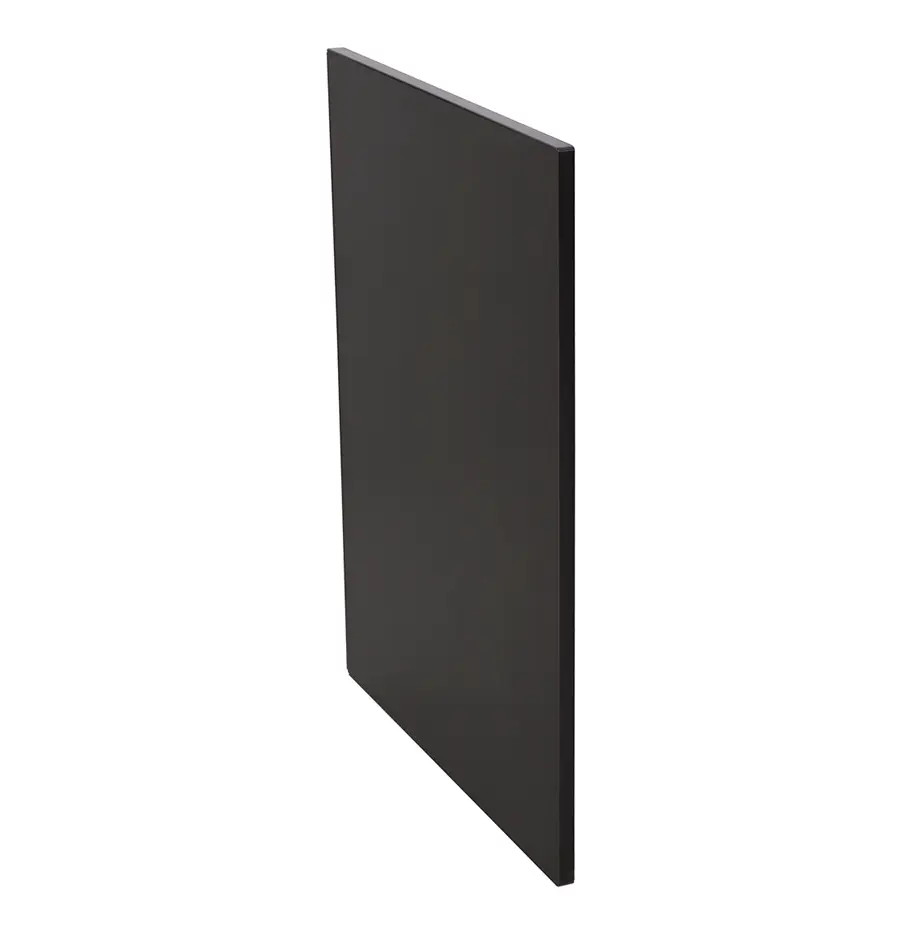

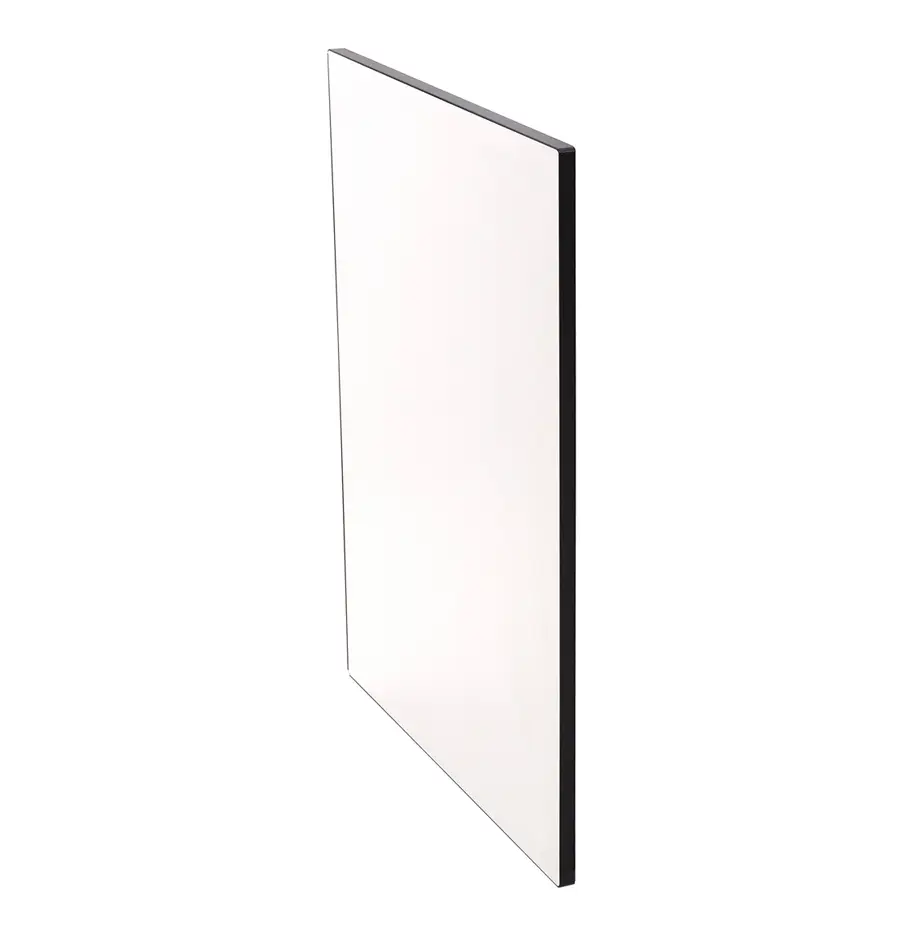

End Panel Assemblies

• End panels are needed to finish off your BBQ Kitchen cabinetry. Order them in the same colour as your cabinetry to ensure that your AlfrescoPlus™ BBQ kitchen is finished off correctly!

• 22mm W x 730mm D x 915mm H

• Pack of 2

Arctic White

APCEP2PWHT

I/N: 0119436

Cadet Grey

APCEP2PGRY

I/N: 0119437

Black Onyx

APCEP2PBLK

I/N: 0119438

Double Modules

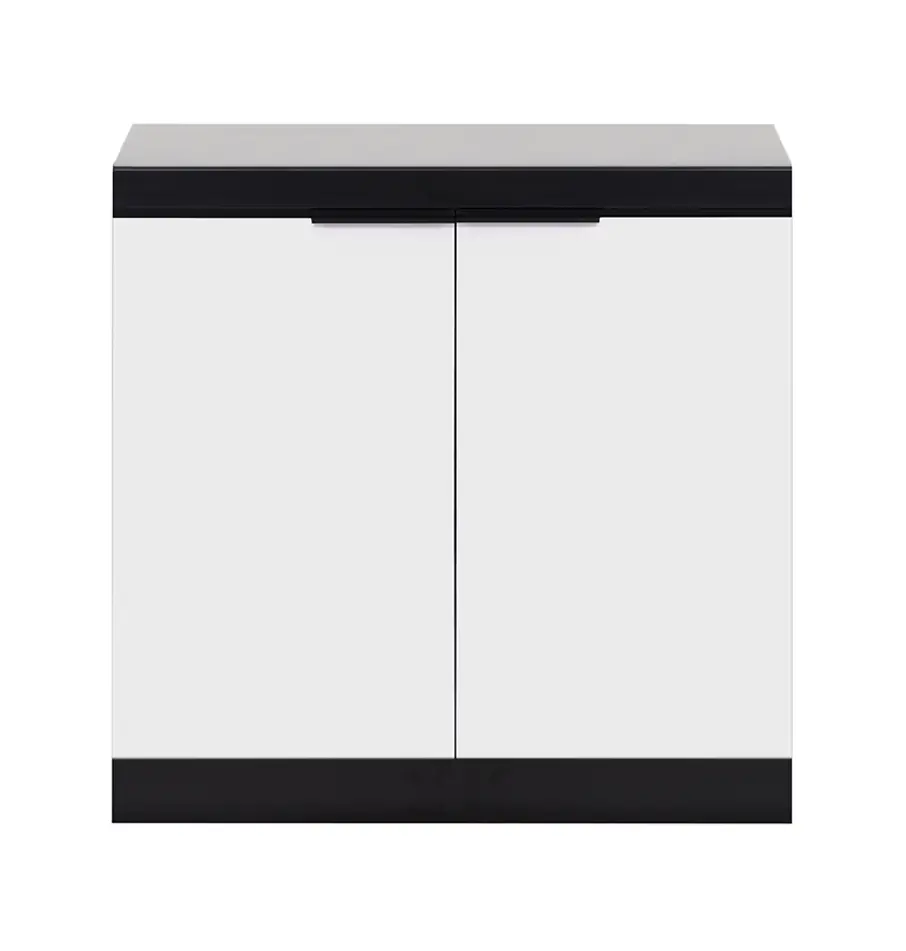

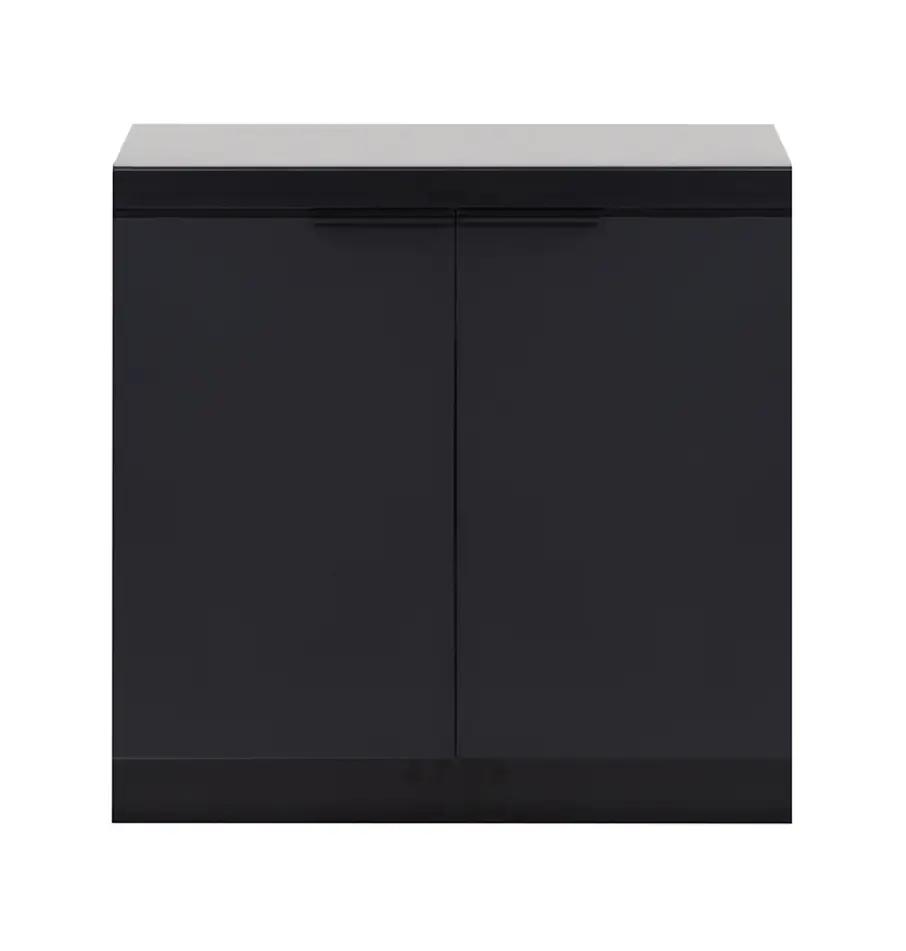

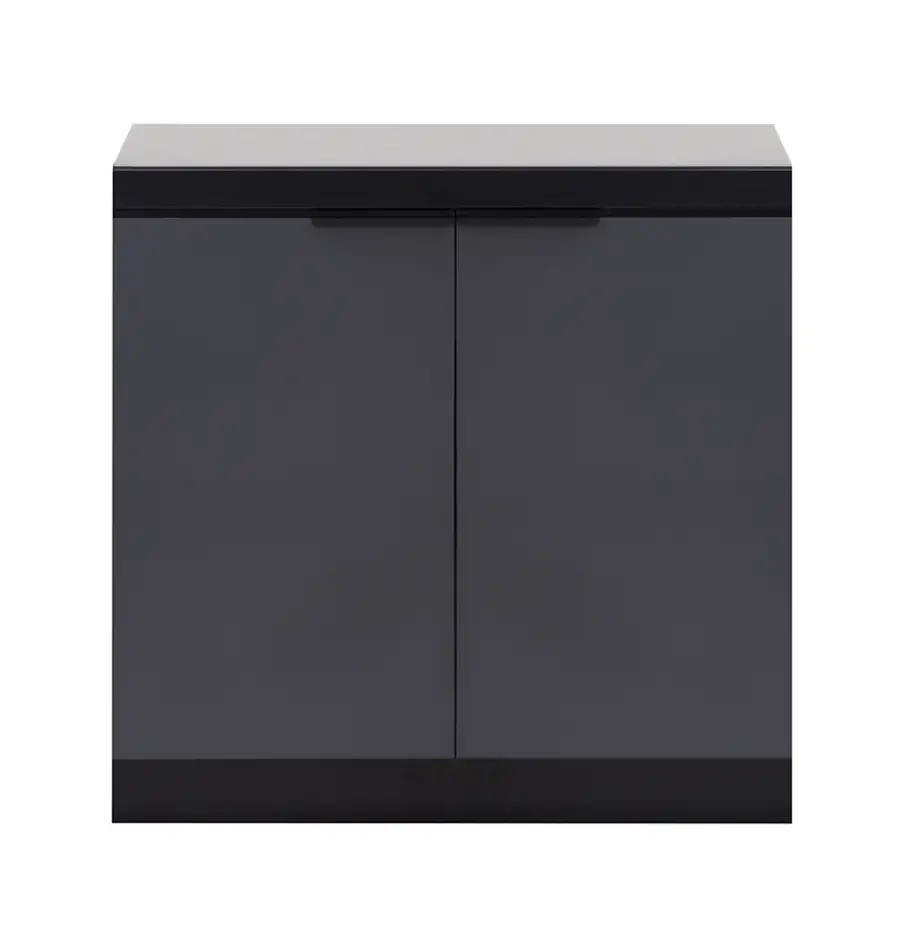

Double Door Module

• Module: 960mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and
Bench top

• Bench top: 730mm deep to allow for services*
(see note below)

Arctic White

APDDMW2

I/N: 0650449

Cadet Grey

APDDMG2

I/N: 0650446

Black Onyx

APDDMB2

I/N: 0650447

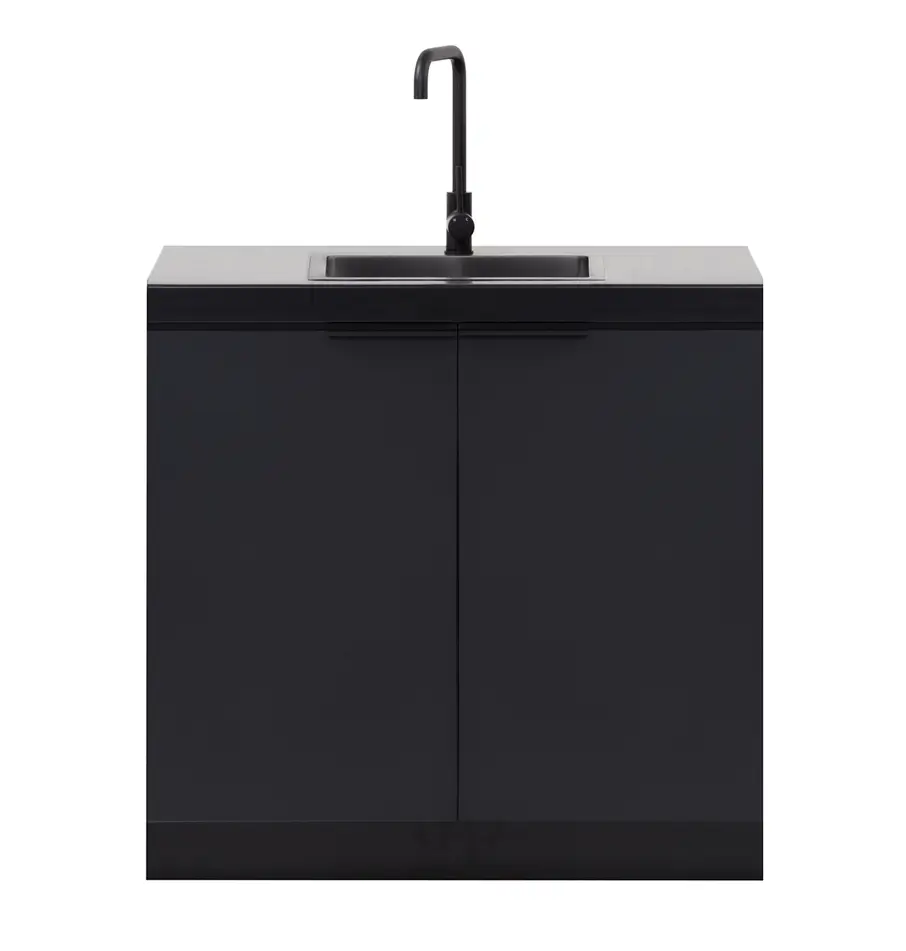

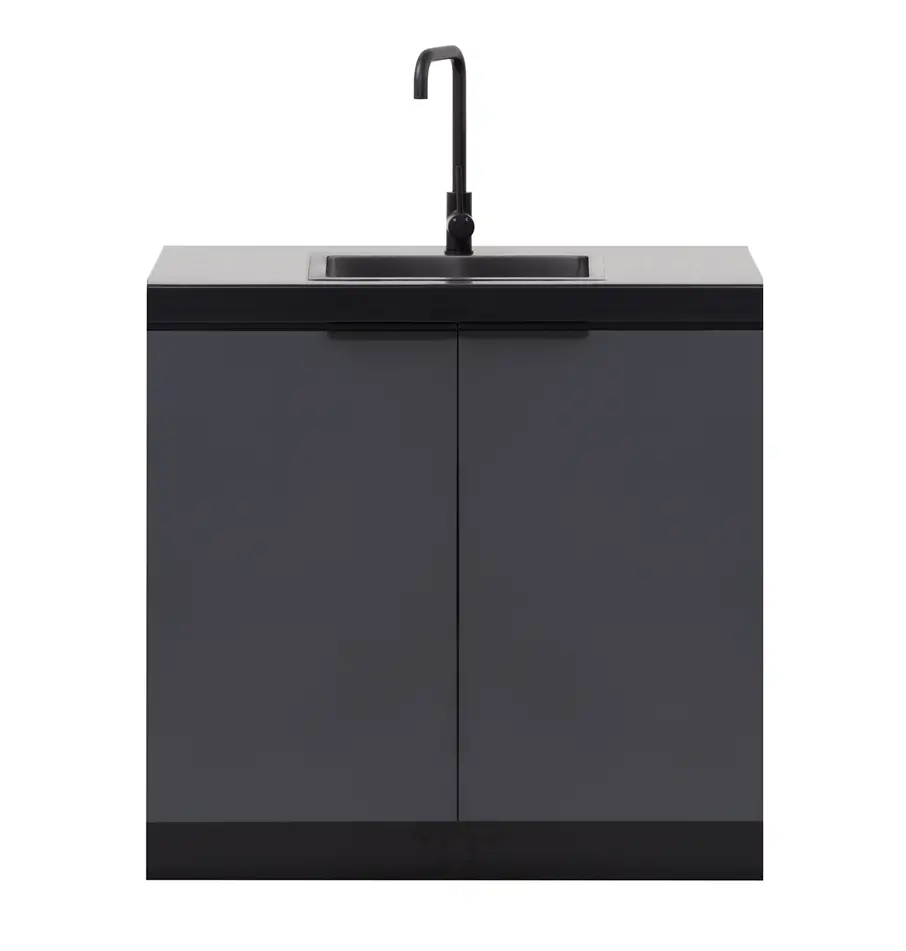

Double Sink Module

• Module: 960mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and
Bench top

• Bench top: 730mm deep to allow for services*
(see note below)

• Includes matt black sink and tap

Arctic White

APDSMW2

I/N: 0650454

Cadet Grey

APDSMG2

I/N: 0650459

Black Onyx

APDSMB2

I/N: 0650463

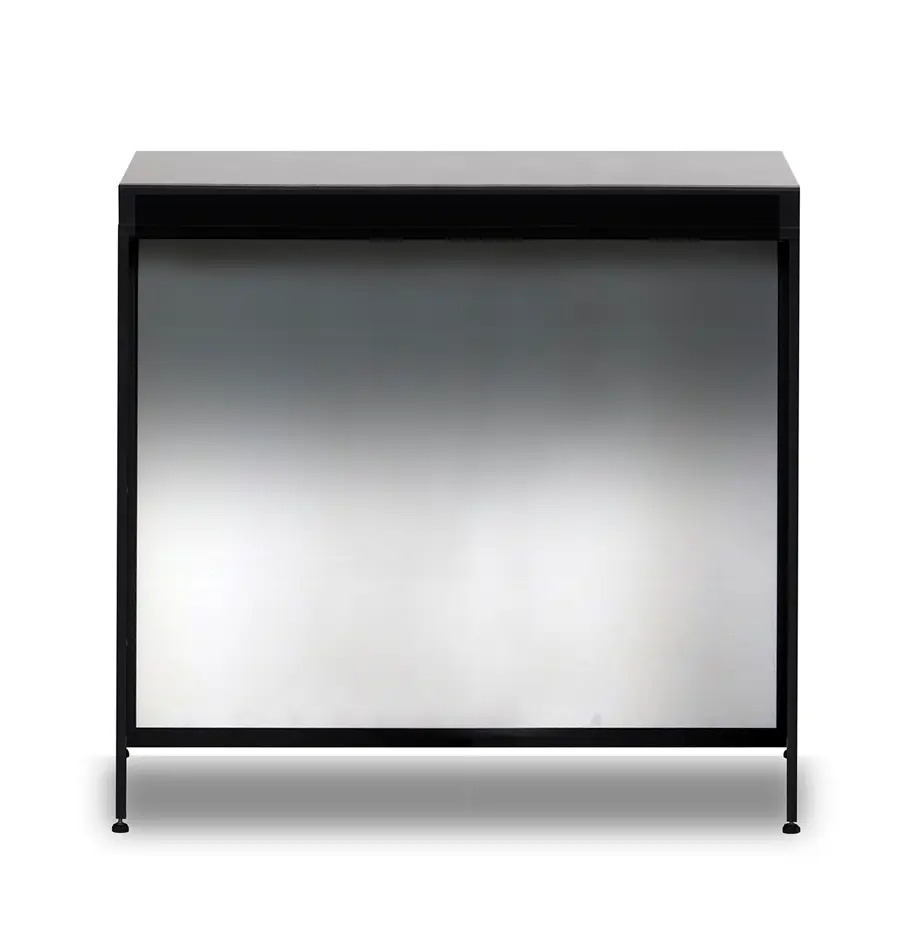

Double Fridge Module

• Module: 960mm W x 580mm D x 950mm H

• 950mm total max height including adjustable feet and
Bench top

• Bench top: 730mm deep to allow for services*
(see note below)

• Vents at back of module

APDFM2

I/N: 0650457

Please note: Air Frame on BBQ modules and Bench tops on single and double modules are deeper than the modules to allow for services (gas, hot and cold plumbing, electrical cords and drainage) to run behind the outdoor kitchen when assembled. The legs on each module are designed to be adjusted for levelling.
